ADA Shower Requirements: Codes, Sizes & Support for Construction & Design Professionals
Understanding the specific ADA shower requirements for your project is critical to ensuring it meets required standards and passes inspection. Whether your building new multi-family housing or replacing an existing shower with an ADA roll-in or transfer solution, knowing the key ADA codes, dimensions, accessories, and other nuances, applicable to your project can help you choose the right solution confidently. Non-compliance can lead to failed inspections, costly mistakes, and delayed timelines. The best time to understand what’s required is before you get started. Use the information on this page as a starting point to better understand what your project may require.
What is an ADA Compliant Shower?
To ensure full compliance, it’s crucial to check with your local Authority Having Jurisdiction (AHJ) as local amendments and regulations may apply; however, ADA is generally considered the national standard. The ADA Standards outline various minimum requirements for showers, including interior dimensions, threshold heights, types of shower seats and grab bars, their placements, clear space, and more.
Designing For Everyone: Places ADA Showers Are Required
ADA Compliant bathrooms are often a legal requirement in most commercial builds, such as hospitals, clinics, retirement homes, and public spaces, like gyms or hotels. Risks of not complying include legal measures, failing inspections, and liabilities. Starting your design process with an understanding of the compliance required helps reduce risks and avoid costly mistakes
Multi-Family Housing
Apartment and condo projects often require a percentage of the units to be accessible or adaptable.
Commercial & Public Spaces
From offices and recreation centers to fire halls, many publicly-accessible buildings require accessible bathing options.
Student Housing
Campus housing typically requires accessible and/or adaptable bathing solutions for students and guests.
Senior Living
Roll-in and transfer shower systems are commonly required in assisted living and retirement communities.
Healthcare & Hospitals
Rehab centers, clinics, and patient rooms can require compliant bathing solutions that are durable and hygenic.
Fair Housing & HUD
Federally assisted housing has additional accessibility requirements for architects and builders to consider.
Choose The Right Type of ADA-Compliant Showers for Your Project
Not all ADA-compliant showers are the same. Depending on mobility needs, project type, and compliance standards, Freedom Showers (by Accessibility Professionals) offers a range of prefabricated ADA shower stalls and pans sizes built for both residential and commercial use.
Prefabricated ADA shower stalls and pans are popular over custom tiling because they come in compliant ADA dimensions and threshold heights and are typically pre-leveled, and thus easier to install and with reduced risk of dimensional errors. Freedom Showers offers high-quality, code-compliant options that are trusted by construction and design professionals, making them a top choice for projects requiring ADA accessibility.

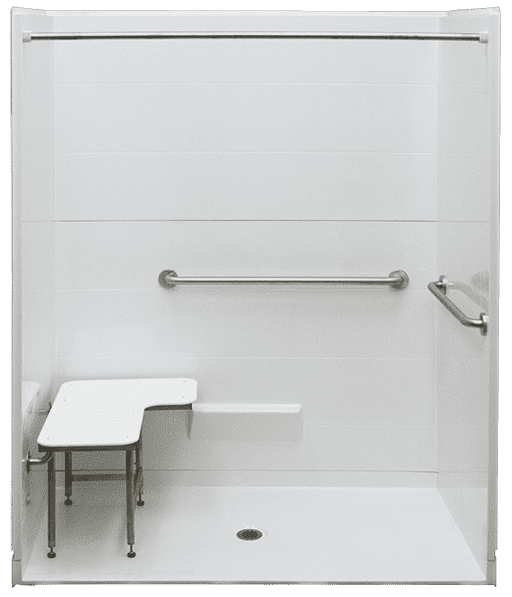

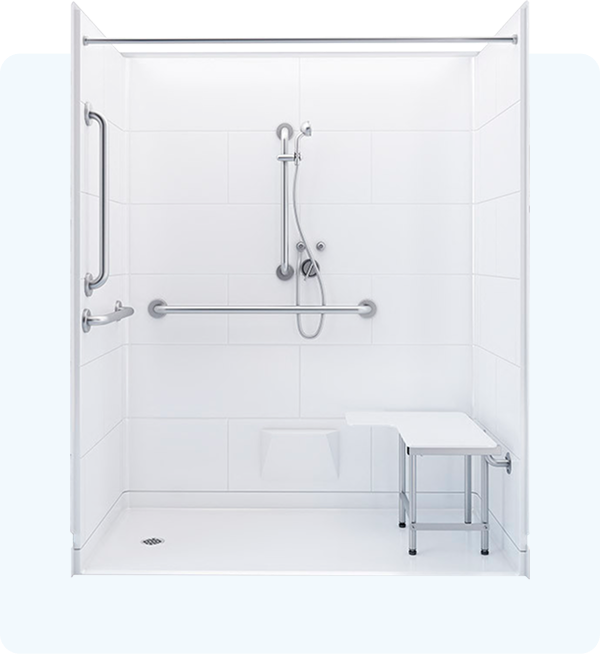

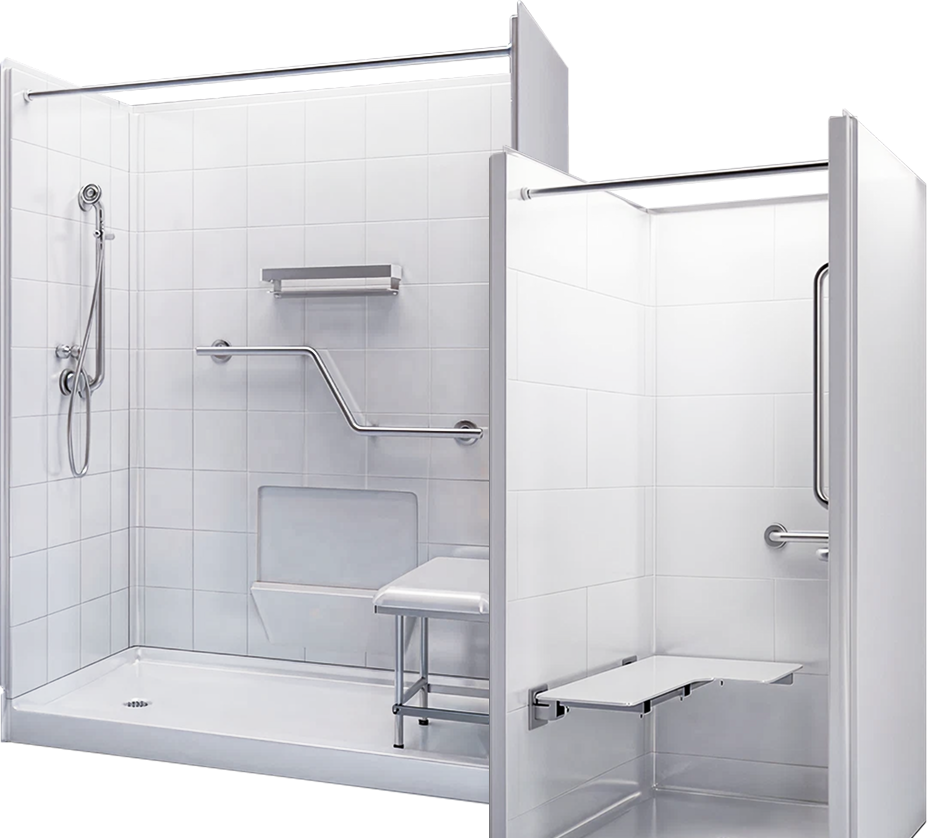

Roll-In Showers for Full Accessibility
ADA Roll-In Showers for Wheelchair Access
Freedom ADA Roll-In Shower Stalls are made for commercial environments that need dependable wheelchair access and code-compliant design. Each unit features minimum inside dimensions of 60″ x 30″, a low-entry threshold designed to be 1/2″ above the finished floor, and reinforced wall backing for secure grab bar installation.

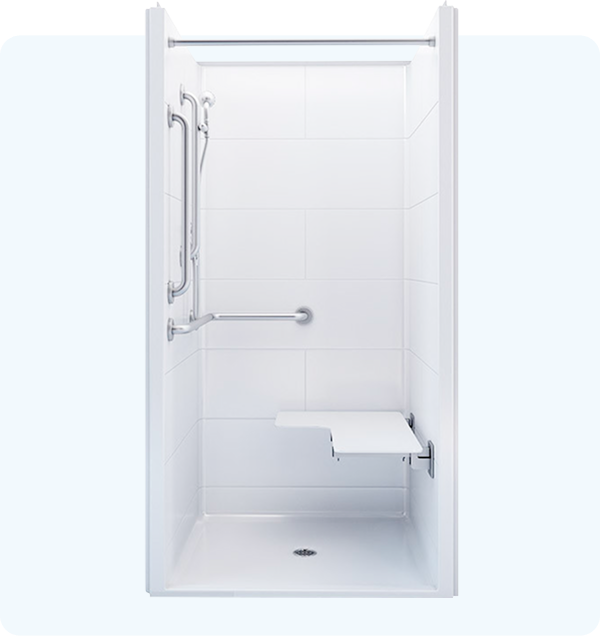

Transfer Showers for Assisted Accessibility
ADA Transfer Showers for Wheelchair Transfer
Built to satisfy inside dimension requirements, our spacious 36″ x 36″ ADA transfer showers feature reinforced wall backing, pre-leveled pans, and multiple configuration options to suit your project.

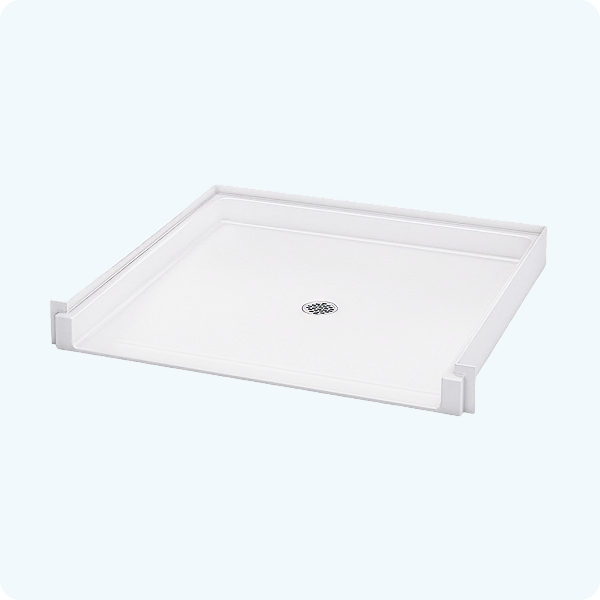

ADA-Compliant Shower Pans & Bases
ADA-Compliant Shower Pans
For shower projects that feature custom wall tiling, our pre-leveled ADA shower pans offer a convenient and quality shower floor solution. We provide a range of base sizes to fit your needs, whether you’re looking for roll-in or transfer type compliance.
Key Features of ADA Showers
| Type | Ideal For | Inside dimensions | Threshold | Clearance space |
| Roll-In Shower | Wheelchair and walker users rolling into the shower | Minimum 60” long by 30” deep | ≤ ½” if beveled or ≤ 1/4” if flush above the finished floor | Minimum 30” x 60” for unobstructed wheelchair entry |
| Transfer Shower | Wheelchair users transferring from mobility devices | Required to be 36” long by 36” deep | ≤ ½″ beveled, rounded, or vertical above the finished floor | Minimum 36” x 48” adjacent to the entrance for safe transfers |
ADA Shower Stall Compartment Size and Clearance Diagrams

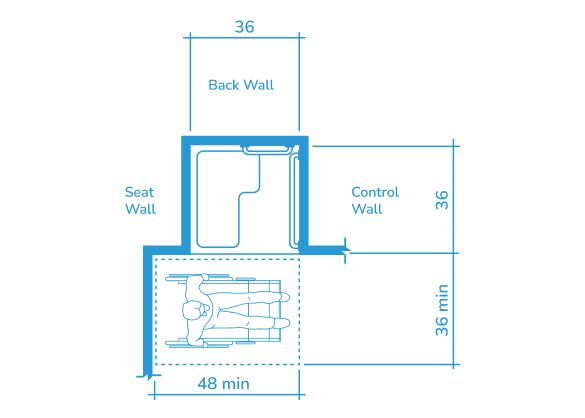

Transfer

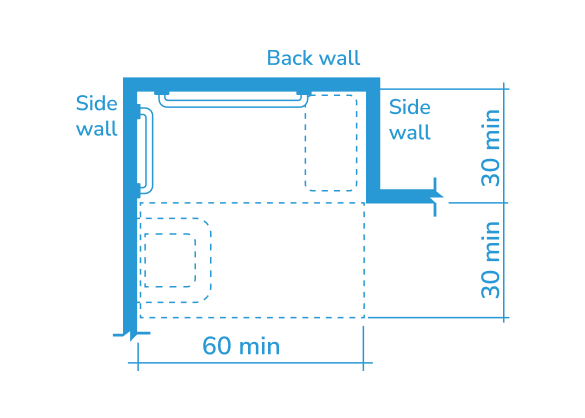

Roll-in shower
Note: Inside finished dimensions measured at the center points of opposing sides

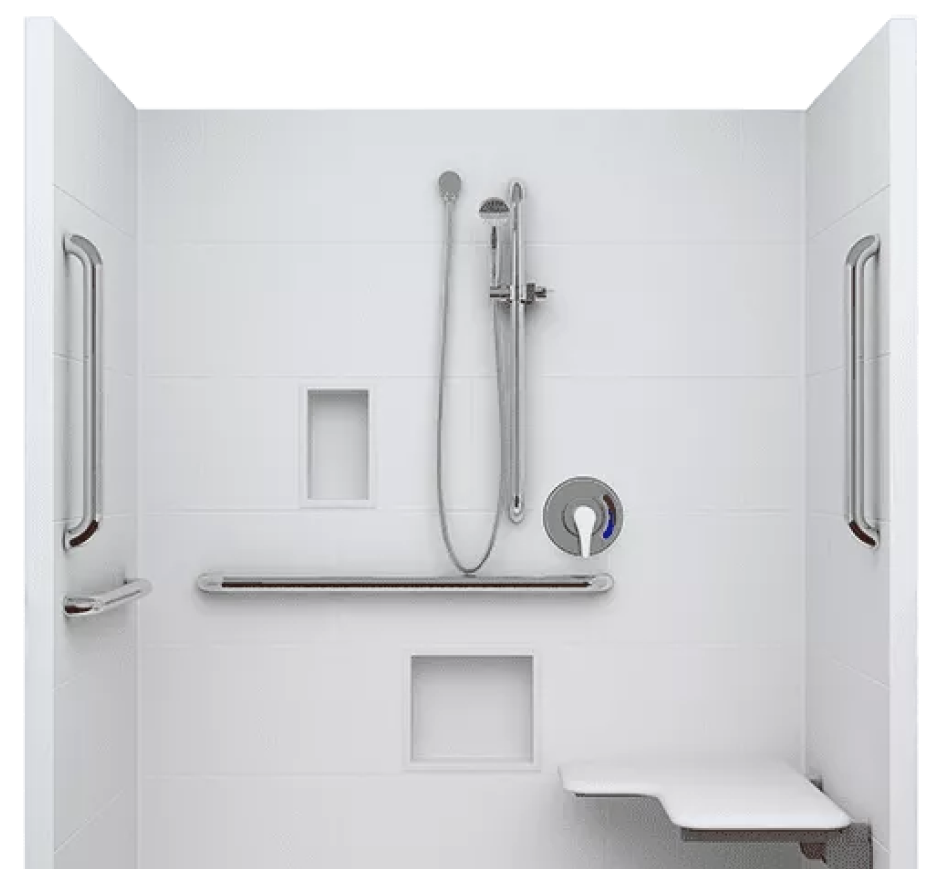

ADA Shower Requirements That Matter on Site
Shower Seats:
Shower seats provide support, comfort, and stability, especially for individuals with mobility challenges.
Roll-in shower: Shower seat is optional (except in accessible transient lodging guest rooms, i.e. hotels), but a folding seat can be included on a side wall adjacent to the controls.
Transfer shower: A fixed or folding seat is required on the wall opposite the controls. The ADA Standards outline specific guidelines for shower seats in Section 610.3, including:
- Shape. Rectangular or L-shaped.
-
Spacing. Within 3” of the entry. Specific edge distances vary by seat shape:
- Rectangular seat: Rear edge: 2½″ max from seat wall; Front edge: 15”-16″ from seat wall; Side edge: 1½″ max from adjacent wall.
- L-shaped seat: Rear edge: 2½″ max from seat wall; Front edge: 15”-16″ from seat wall; Front edge (wide portion): 22”-23″ from seat wall; Base of “L”: 14”-15″ from adjacent wall.
- Height. Top of shower seat 17”-19” above the finished floor.
- Strength. Shower seat and mounting must support minimum of 250 lbs. of force from any direction.
Grab Bars:
Grab bars provide stability and safety in showers, aiding standing, transfers, and movement.
Roll-in shower: Grab bars are required on the back wall and side wall opposite the seat (if a seat is provided), or on all three walls (if no seat).
Transfer shower: Grab bars are required on the back wall and the side wall with controls.
The ADA Standards outline specific guidelines for grab bars in Section 609, including:
- Size and Shape.Circular bars: 1¼″–2″ outside diameter.Non-circular bars: 2″ maximum cross-section diameter.Perimeter: 4″–4.8″ maximum.
- Spacing. 1½″ space between the wall and grab bar, and between the grab bar and other objects.
- Positioning. Horizontal installation, 33″–36″ above the finished floor.
- Safety. Sharp edges are not allowed, and grab bars should not rotate or move when force is applied.
- Strength. Grab bars must support a minimum of 250 lbs of vertical or horizontal force.
Shower Controls:
Shower and bathtub controls allow users to adjust water flow and temperature easily, and must be positioned for convenient access.
Roll-in shower: With a seat, controls should be on the back wall, next to the seat wall, within 27″ of the seat. If no seat is provided, controls may be placed on any wall.
Transfer shower: Controls are required on the side wall opposite the seat and within 15″ of the seat’s centerline.
Section 608.5 of the ADA Standards outlines shower controls guidelines, including:
- Placement. Maximum 48″ above the finished floor.
- Hose Length. Minimum 59″. Must function as both fixed and handheld shower.
- Operability. Operable with one hand, no tight grasping, pinching, or wrist twisting, and requires ≤5 lbs of force.
- Mounting. Controls must not obstruct grab bars.
- On/Off Control. Water flow must not be fully shut off to prevent sudden temperature changes.
- Max Temperature. 120°F (49°C) limit.
READ MORE
Whether you’re unsure which type of ADA shower you need, if your project requires ADA compliance, or if you’re comparing options, we’re here to help. Get an expert advice from a team with nearly 20+ years of experience.
Talk to an Expert
Choosing Between One-Piece and Multi-Piece Showers

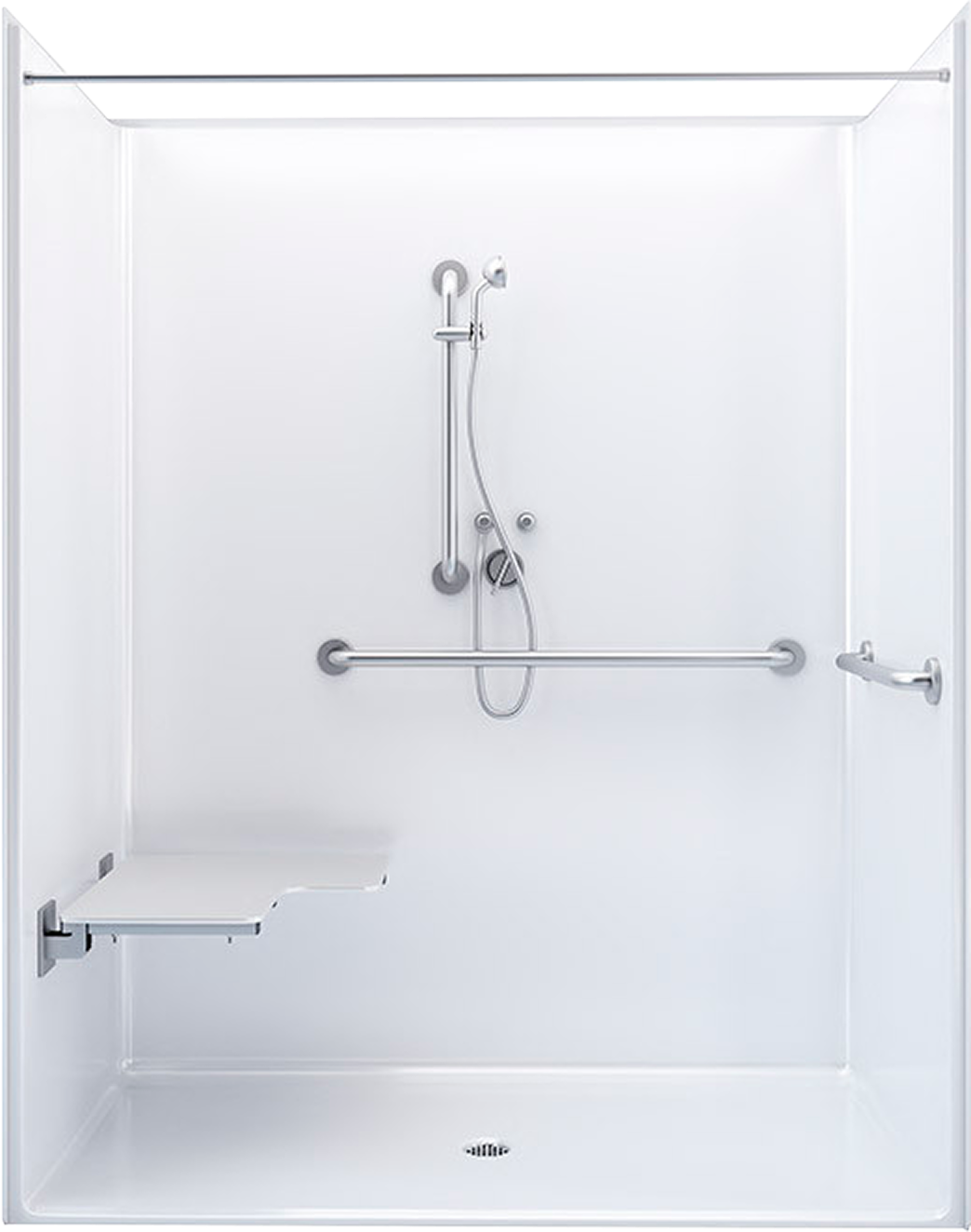

One-Piece
One-piece ADA shower stalls are ideal for new construction, where you have the space to bring in a full unit before walls go up. They offer a seamless surface, factory-installed accessories, and faster installs.

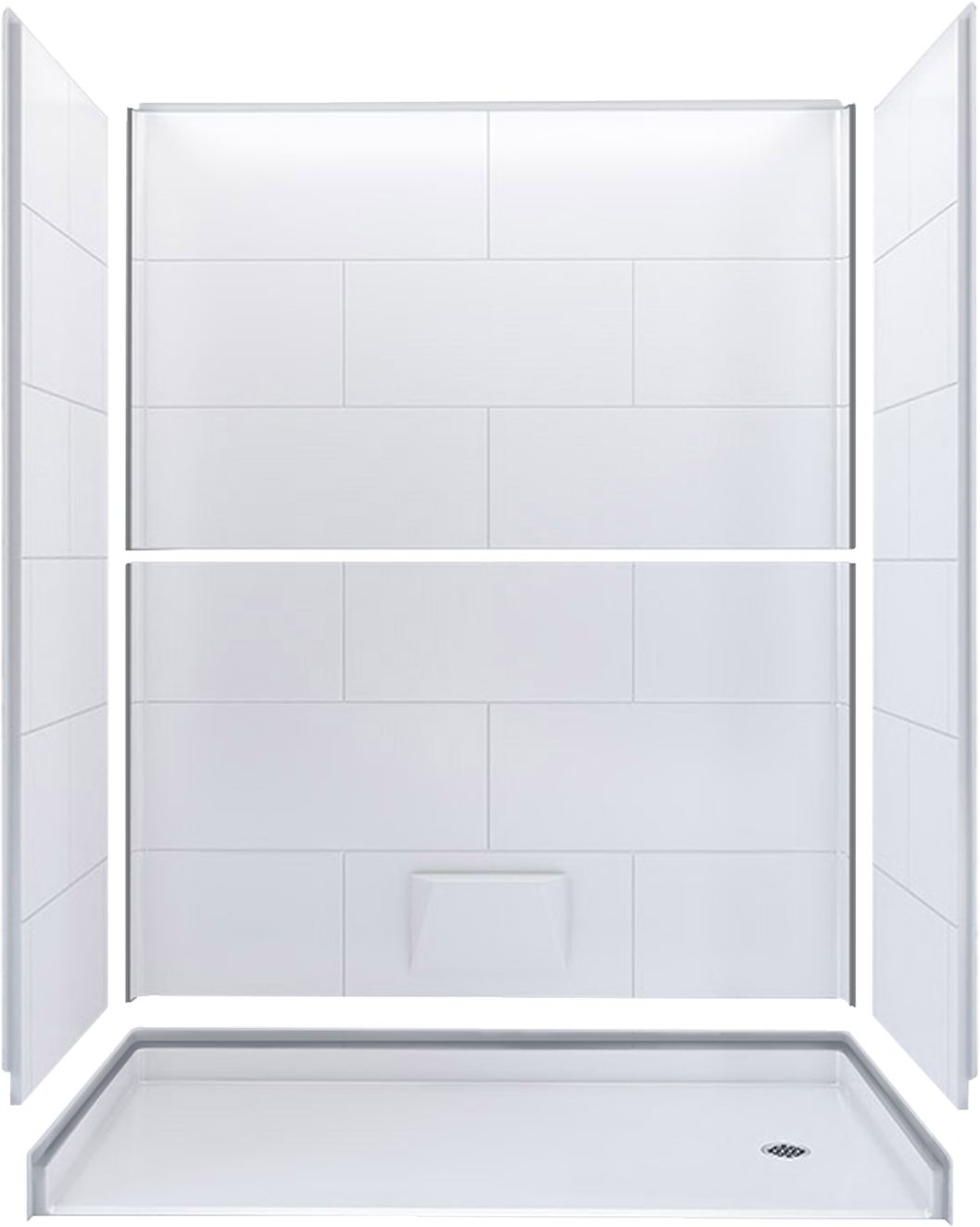

Multi-Piece
Multi-piece ADA showers are designed for remodeling projects as the panels fit through standard doorways and tight spaces, then assemble on-site. They are great for retrofits or tight residential builds.
Why Choose Freedom ADA Showers:
30-year warranty
20+ years of experience
Made in the USA
Talk to an Expert

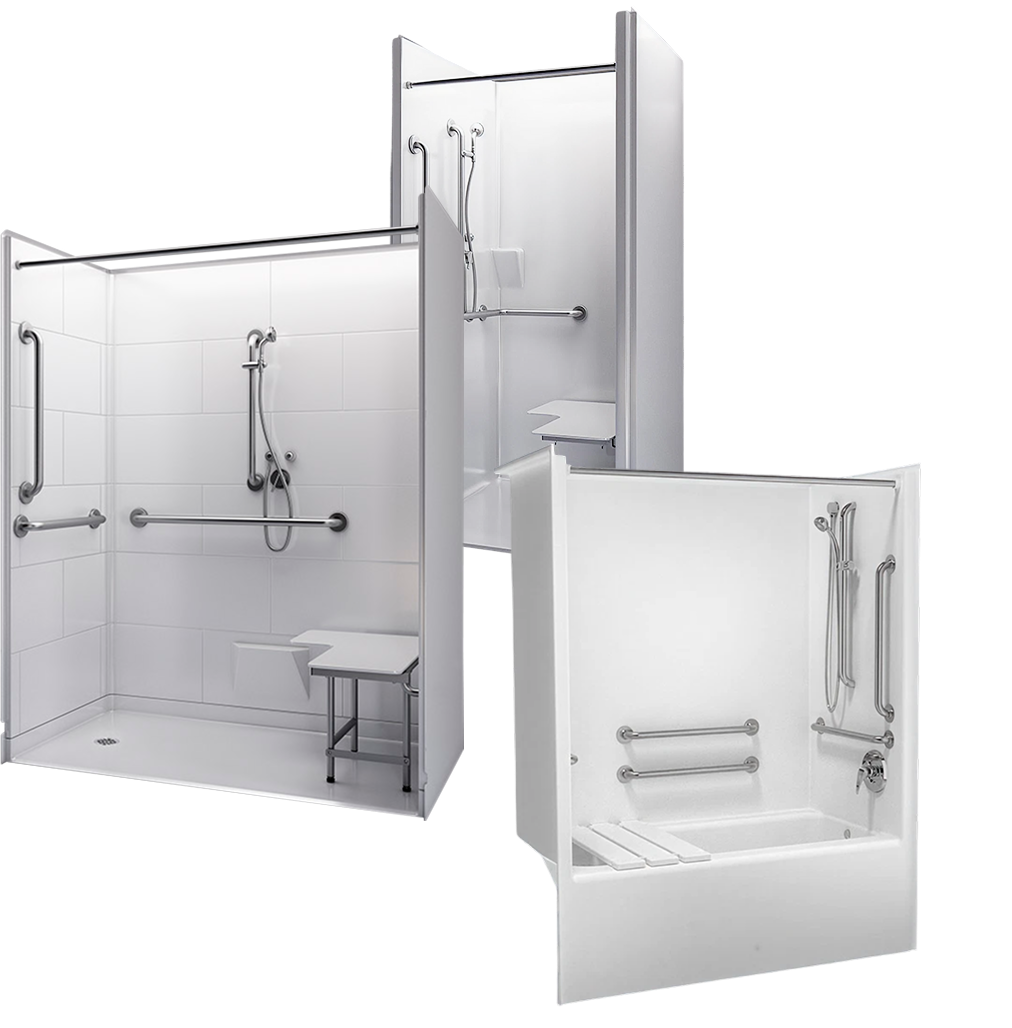

Freedom Showers Designed to Meet ADA Requirements
Designed to meet the 2010 ADA Standards for Accessible Design
Includes prefabricated thresholds, dimensions, and wall reinforcement
Featured in thousands of public-access and commercial projects
Contact Us
Give us a call, or fill out our contact form — we’d love to talk with you.
11 Victoria St, Unit B3
Barrie, Ontario, Canada
L4N 6T3
8am-7:30pm Eastern
Friday:
8am – 6:30pm Eastern
Get Expert Advice For Your Next Build
Frequently Asked Questions
ADA-Compliant Showers What are ADA shower requirements?
They are a standardized set up guidelines from the Americans with Disabilities Act (ADA) regarding the dimensions, sizes, and specs of showers for those with disabilities. ADA-compliant showers must meet the 2010 ADA Standards for Accessible Design and include:
- Easy wheelchair access with a low threshold to help meet the 1/2″ above finished floor ADA requirement
- Minimum of 60″ x 30″ inside dimensions, providing compliance and lots of room to manoeuvre in a wheelchair
- Reinforced wood-backed walls for easy installation of required accessories, such as grab bars
What is an ADA roll-in shower?
ADA Roll in showers accommodate someone rolling into the shower in a wheelchair or rolling shower chair. They have a low threshold so that there are no issues of the chair getting in the shower. All ADA showers must follow strict ADA requirements.
What's the difference between a transfer shower and a roll-in shower?
Transfer showers are often smaller (with dimensions such as 36″ x 36″) and are used to help transfer from a wheelchair to a built-in seat in the shower. Roll-in showers are larger (60″ x 30″) because they allow the whole wheelchair to roll into the shower, so there is no seat or low threshold on the floor.
Can a walk-in shower be ADA compliant?
Any shower can be ADA compliant as long as it meets ADA regulations. If a shower does not meet requirements, then it is not compliant. The requirements are in section 608 Shower Compartments of 2010 ADA Standards for Accessible Design.
Do all projects require ADA showers?
Not all projects need ADA showers, but some may request ADA compliance. Often it is legally required in commercial, public-use, healthcare, and certain residential projects. However, choosing an ADA design at the start of the project helps future-proof the build and allows it to have compliance if ever it is required in the future.
What's the minimum size for an ADA shower?
- Roll-in shower: 60″ x 30″ minimum interior dimensions
- Transfer shower: 36″ x 36″ interior dimensions
Do ADA showers need grab bars?
Yes, as per the 2010 ADA Standards, Sections 608.3.1, 608.3.2, and 609, which specify placement, size, and installation height, it states that ADA-compliant showers are required to have grab bars.
What kind of threshold is allowed for ADA showers?
ADA-compliant showers typically have a threshold (the lip at the bottom of the shower entrance) that is no more than 1/2 inch (12.7 mm) high. This is to allow for easy entry and exit, especially for individuals using wheelchairs or other mobility aids.
What are the benefits of prefab vs. tile-built ADA showers?
Prefabricated showers are fully ADA compliant, and are often easier to install, and reduce the risk of failed inspections or costly retrofits. The quality and ability to meet code every time makes them the preferred choice for most contractors for most projects.
What's the difference between a one-piece and multi-piece ADA shower?
One-piece showers are ideal for new builds with easy access, while multi-piece units are better for remodels since they come in panels that fit through standard doorways.
Where can I find help choosing the right ADA shower for my build?
Freedom Showers offers expert support, 20+ years of experience and 30 years warranty on quality, US made products that meet 2024 ADA guidelines.
Can shower pans meet ADA requirements?
Yes, some shower pans can be ADA-compliant, but there are specific requirements they need to meet. The key factors are having the right interior dimensions and a beveled threshold that’s no more than half an inch high. That said, the shower pan is just one piece of the puzzle. For your shower to truly be ADA-compliant, the entire installation needs to meet accessibility standards. This includes having enough clear floor space around the shower, proper reinforcement in the walls for grab bars, and controls positioned where they’re easy to reach. So while you can definitely find ADA-compliant shower pans, make sure to consider the whole shower setup to ensure it meets all accessibility requirements.
